Description
실리콘나이트라이드로 만들어진 발열체는 다양한 크기와 형태로 만들어 지며 포장되어지는 제품의 크기에 맞도록 조정할 수 있습니다. 주요 형태는 링히터, 직사각형히터 및 heated rails입니다.  세라믹 물질의 훌륭한 열전도와 낮은 열용량 덕분에 빠른 가열속도, 균일한 온도분포 및 높은 제어 정확도가 가능합니다. 핫프레스된 실리콘나이트라이드의 높은 강도가 짧은 공정시간에서 고스트레스저항성과 뛰어난 내마모성을 보증합니다. 세라믹 물질은 살균제와 세제에 견디고 식품과 어무런 반응도 하지 않습니다. 포장기계용으로 공기에서 500 C°까지 동작을 하는 발열체를 제공합니다. 성능과 온도제어는 재료와 포장기계에 따라 조정됩니다.

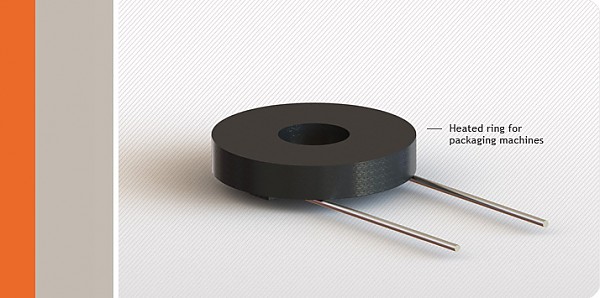

Ceramic heating elements made of silicon nitride can be produced in various sizes and shapes and
adjusted to fit the dimensions of the goods to be packed. Typical shapes are ring heaters, rectangles
and heated rails. The good thermal conduction and the low thermal mass of the ceramic material allow
extremely fast heating rates, a uniform temperature distribution and high control accuracy. The high
strength of hot-pressed silicon nitride guarantees high stress resistance and excellent wear resistance
at short processing times. The ceramic material is resistant to disinfectants and detergents and does
not react to food in any way. We provide heating elements for packaging machines for operating in the
open air at temperatures up to 500 °C. Performance and temperature control can be adjusted to the
material and the packaging machine.


응용분야                                                      장점
ㆍ가열봉합                                                  ㆍ사이클시간을 줄일수 있고 공정수율을 증대할 수 있습니다.
 ㆍ열접착                                                    ㆍ공정비용과 에너지를 줄일 수 있습니다.
ㆍ건조(예: 접착제)                                       ㆍ예열을 없애거나 가열시간을 수분까지 줄일 수 있습니다.
ㆍ계량(예열)                                                ㆍ가열부품의 질량과 부피 축소에 의해 기계가 작고
ㆍ열날절단기                                                   가벼워질 수 있습니다.
ㆍ호일용접                                                  ㆍ열부품에 의해서 발생하는 다운타임을 없에거나
ㆍ열성형                                                          획기적으로 줄일 수 있습니다.
ㆍDeep drawing
ㆍ열처리플랜트
ㆍ스탬핑(라벨링)
Customized design
Bach RC사 자체 설계로 크기, 형상 또는 성능등에 대한 변경이 간단하고 편리하게 가능해집니다. 온도센서용 마운팅브라켓구멍이 포함 될 수 있으며 레이저절단 진공 홈 역시 추가될 수 있습니다. 발열체에 대한 평탄도 와 치수 공차는 < 10 μm가 될 수 있습니다. 마운팅브라켓과 기계연결이 heated rails and heated knifes의 납품시 제작 및 포함이 될 수 있습니다. 추가하여 재료의 형태 또는 가열되어지는 공구에 따라  조정되는다양한 윤곽이 가능합니다. 절단공정을 위해 절단날 연마와 블레이드에 직접 가열하는 것이 가능합니다. 추가하여 특별한 응용을 위한 점히터(연마를 통한) 또는 빗 형태의 히터가  가능합니다.
Our in-house designs make any modification in size, configuration or electrical power simple and
convenient. Mounting-bracket holes and bores for temperature sensors can be included. Processing our
heating elements we can achieve a flatness and a dimensional tolerance of < 10 μm. Mounting-brackets
and machine connections can be built and included in the delivery of heated rails. In addition various
contours adjusted to the shape of materials or tools to be heated are possible. For cutting processes it
is possible to grind a cutting edge and directly heat the blade. (see heated knifes). In addition ground
points (point heaters) or comb structures for particular applications are possible.
[이 게시물은 관리자님에 의해 2014-04-29 19:04:20 제품소개에서 이동 됨]
